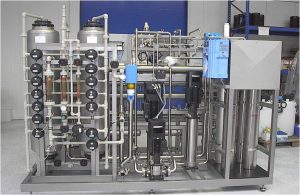

OSMOSTAR PW Unite (5um Filter +RO+EDI +UV)
OSMOSTAR uses the technologies of reverse osmosis and electrodeionization for produsing purified water. The system is compact, easy operating and quick installed.
|
Infeed Water temperature: – Operation – Design |
15-25°C 15-25°C |
|
Infeed Water Flow: – Operation – Design |
on request |
|
Output Water Flow: – Normal – Design |
on request |
|
Chemicals Concentration: NaCLO H202 NaOH NaHSO3 |
3-5% 3% 1% 1% |
|
Incoming Power: – Controls – Motors |
380VAC/3phase/50Hz |
|
Nameplate Power: – Controls – Motors |
220VAC/50Hz and 24VDC 380VAC/3phase /50Hz |
|
Location |
indoor |
|
Ambient Air Temperature: – Design Minimum – Design Maximum |
Winter 10°C 10 °C 35°C |
|
Area Classification |
Unclassified Non-hazardous |
|
Noise Level |
<85dB as sound Pressure level |
|
Pressure Vessel Design Standard |
GB150-1998 |
|
Piping Design Standard |
ANSI |
|
Skid Material |
Stainless steel 304 |
|
Enclosure nameplate material |
Stainless steel 304 |
- Technical data of purified water generator
2.1. Water conversion factor (WCF)
WCF of pretreatment – about 97%
WCF of 1’st RO – about 75%
WCF of EDI – about 90%
WCF of All – 70%
2.2. Size of skid
Each skid will be installed in individual frame including interconnected pipe and cable.
The size of skid will be provided on request
MMF+ACF
Softener
OSMOSTAR+EDI
2.3. Utility consumption
Raw water
Capacity 11.5 -13 m3/h
Pressure 2-3 bar，
Temperature 15-35℃
Electric power
Voltage 415VAC Phase 3P
Power 15 KW
Oil free compressed air
Flux 0.1Nm3/hr
Pressure 6-7 bar
- Output: 500 l/hour – 50000 l/hour.
- Water pre-preparation: removes low molecular weight organics.
- Water softening system: Ca and Mg filtration stage
- Filter 5 µm: removal of the bulk of the incoming particles > 5 µm
- Reverse Osmosis System: removes most of salts, TOC, endotoxins and SiO
- Deionizations modulesfull removal Co, Cl, and SiO
- Central control and monitoring system: full automatic control and on-line monitoring.
